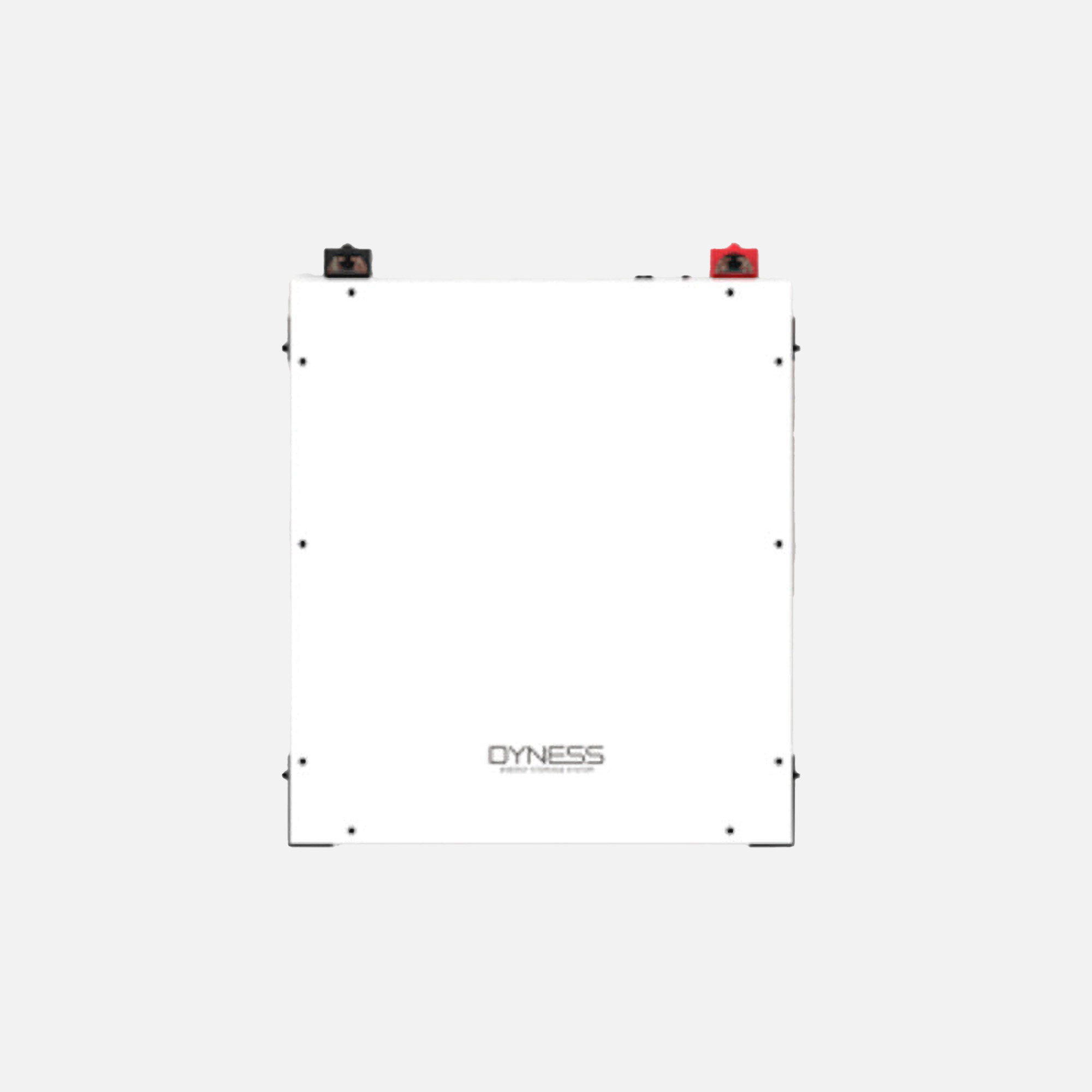

Dyness DL5.0C battery 5.12kWh (7 Year Warranty)
Dyness DL5.0C Battery adopts economic design, and is tailor-made for residential & light commercial. This LFP battery module supports remote update and APP monitoring and provides multiple installation options- wall mounted, floor-standing and stack, it is scalable from 5.12-256kWh (max, 50 modules in parallel), providing various energy storage options to meet different requirements.
Features and Advantages
REMOTE UPGRADE AVAILABLE
MODULAR DESIGN
FLEXIBLE EXPANSION
WIDE COMPATIBILITY
MATCHING WITH LEADING INVERTER BRANDS
VARIOUS MOUNTING METHODS
WALL-MOUNTED, FLOOR-STANDING AND STACK
HIGH SAFETY LFP
CELL LEVEL MONITORING AND BALANCING
Model: DL5.0C
Battery Type LiFePO4
Nominal Battery Energy 5.12kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage 44.8-57.6V
Recommended C Rate 0.5C
Recommended Charge/Discharge Current 50A
Max. Power Charge Current 75A
Max. Power Discharge Current 100A
Peak Power Charge/Discharge Current 110A(15s)
Depth of Discharge 90%
Net Weight 54kg
Dimension[W*D*H] 558*545*150mm
Charging Temp. Range 0-55°C
Discharging Temp, Range -20-55°C
Communication CAN/RS485/RS232
Cycle Life!” 26000 Cycles
Estimated Protection Level IP20
Expansion Up to 50 units in parallel
Pros Can be used in both off-grid and hybrid setups, compact design
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021
Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow etc.
