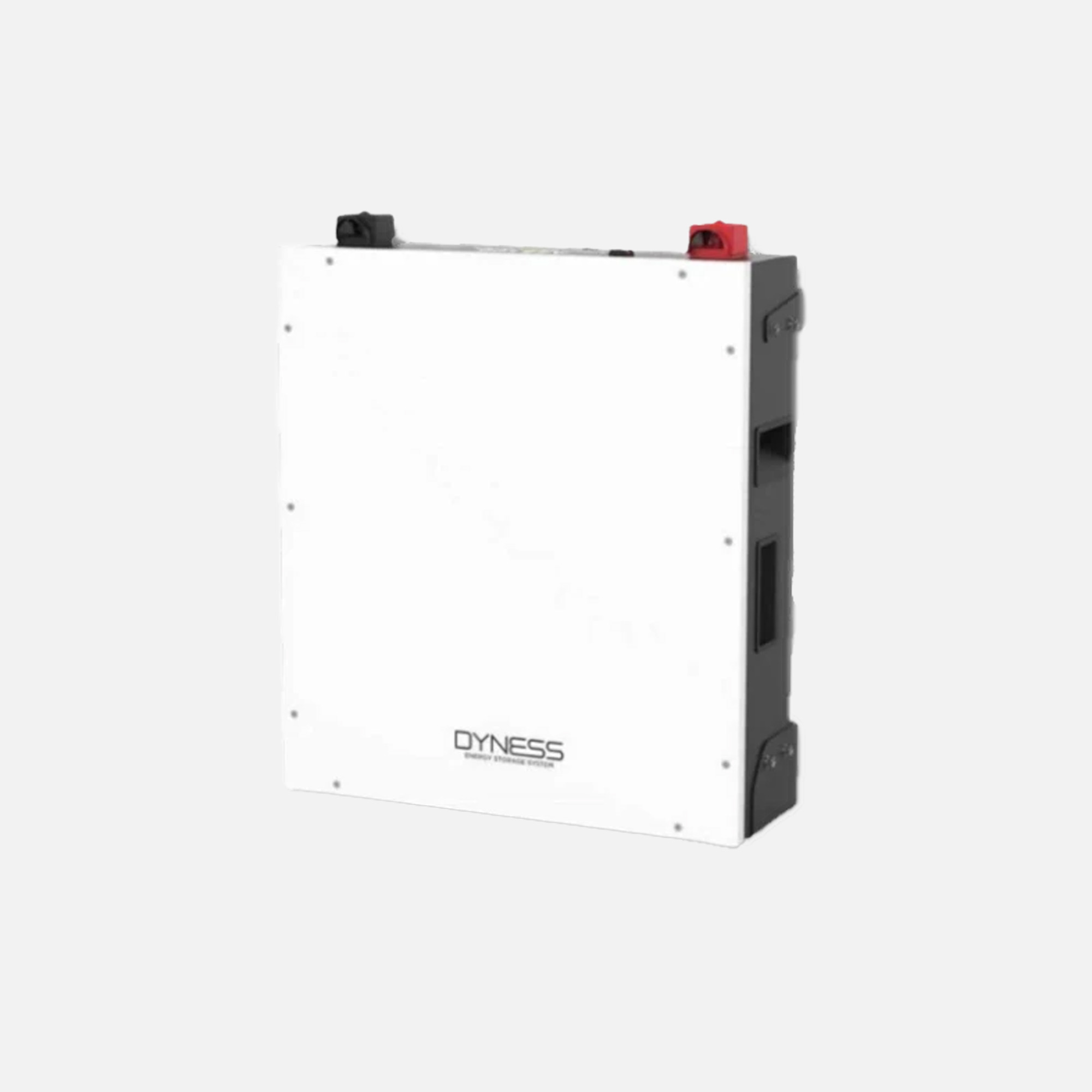

DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Battery Type LiFePO4
Nominal Battery Energy 5.12 kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage 44.8 ~ 57.6V
Recomended Charge & Discharge C Rate 0.5C
Maximum Discharge C rate 1C
Recommended Charge/Discharge Current 50A
Max Continous Charge Current 75A
Max Continous Discharge Current 100A
Peak Power Charge/Discharge Current 110A (15s)
Depth of Discharge (DOD) 90%
Net Weight 54 kg
Dimension[W*D*H] 558*545*150 mm
Charging Temp. Range 0~55℃
Discharging Temp. Range -20~55℃
Communication CAN/RS485/RS232
Cycle Life[1] ≥6000 Cycles
Protection Level lP20
Expansion up to 50 units in parallel
Pros Can be used in both off-grid and hybrid setups, compact design
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
7 Years Warranty
